Direct Insert LED Whip Light Guide for 28 mm Flagpole Mounts

Already have a flagpole holder on your vehicle? The ZYZ direct-insert LED whip light is designed to use a compatible 28 mm holder, so you can add an illuminated pole without buying a separate LED-specific light bracket. Its 4.5 m wiring harness and cigarette-lighter-style power plug also let you connect to a suitable vehicle accessory socket without cutting or splicing the original wiring.

The result is a lighting upgrade aimed at outdoor gatherings, camping setups and vehicle displays. Before choosing it, check the holder fit, the actual cable route and the electrical requirements. Those three checks determine whether the installation will work on your vehicle.

Key Features of the ZYZ Direct Insert LED Whip Light

The direct-insert design is most useful when you already own a suitable flagpole mount. You still need a secure mount: the light does not attach to a bare body panel on its own.

Using an Existing 28 mm Flagpole Mount

A matching diameter is the starting point, not the entire fitment check. Measure the holder opening, then check insertion depth, the retention mechanism and clearance for the cable exiting the base. A nominal 28 mm holder must also support the complete light assembly in the intended conditions.

When those requirements match, the existing holder can perform the mounting job, avoiding a separate dedicated light bracket. Do not force the base into a smaller opening or rely on a loose fit in a larger tube. Send ZYZ a photo and measurements if the holder design is unclear.

Planning the Cable Route

A rear-mounted light can be a long way from the cabin accessory socket. The 4.5 m harness provides routing length for that separation, but a straight-line measurement across the vehicle is not enough. The cable must follow a protected path around trim, through a suitable entry point and past any moving tailgate.

Measure the intended route with a tape or cord from the light connector to the approved socket.

Allow a controlled service loop where a door or tailgate moves. Check the full opening and closing movement while parked.

Keep the route clear of hinges, latches, pedals, seat rails, airbags, hot surfaces and sharp edges.

Confirm that the measured route, movement allowance and connector access fit within the supplied 4.5 m length.

If the route is too long, ask about an approved wiring solution. Do not stretch the harness, pinch it under a door seal or add an unverified extension to make it reach.

Socket Power Without Splicing Vehicle Wiring

The dedicated plug is intended to power the light from a suitable accessory outlet. This avoids tapping into a tail-light circuit or cutting factory wiring for the intended installation. It also lets you unplug the electrical connection when removing the light.

Confirm the light input voltage, current draw and supplied plug fuse against your vehicle manual before connecting it. A plug that physically fits does not establish electrical compatibility. Check that your vehicle permits accessory use at that socket; do not assume every cigar-lighter receptacle has the same purpose or rating.

Disconnect the light when it is not needed, especially if the outlet stays live with the ignition off. Ford owner guidance, for example, warns against exceeding outlet capacity and leaving devices connected during extended parking. Follow the limits for your own vehicle.

Reference: Ford owner guidance on auxiliary power points

Keyed Metal Connectors and Lighting Controls

Align the Connector Before Supplying Power

The harness connector has a metal body and an alignment groove. The key helps orient the mating parts correctly and reduces the risk of connecting them the wrong way. Align the groove gently, seat the connector as instructed and then secure its locking feature. Keep power disconnected during this step.

A keyed connector is not a guarantee against every short circuit. Cable damage, water ingress and incorrect power supplies can still cause faults. Stop using the light if a connector or plug becomes unusually hot, damaged or loose.

Choose Controls for the Supplied Version

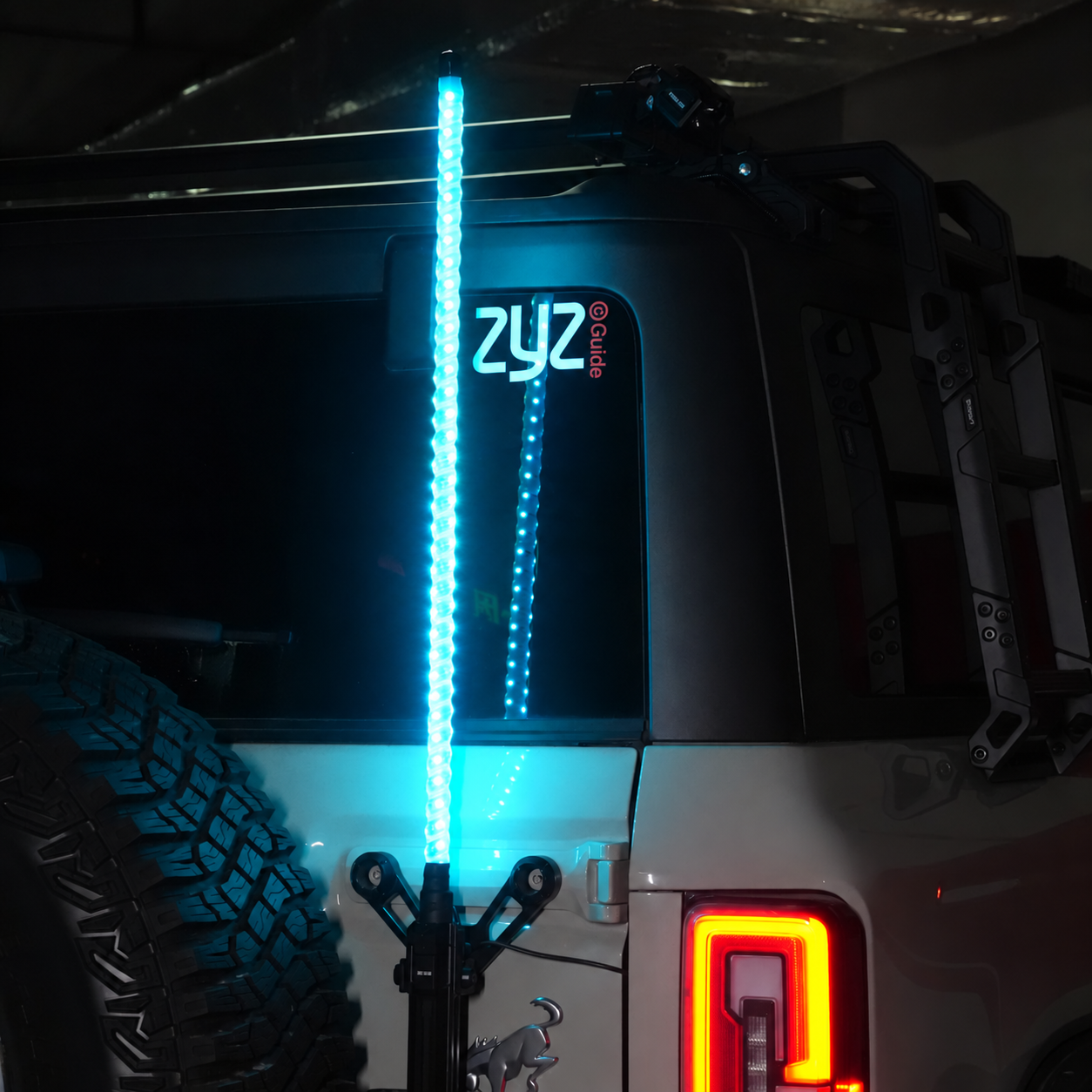

Product visuals show app control and a handheld remote, along with purple and cyan lighting on an installed vehicle. Confirm the controller supplied with your order, the correct app and the supported functions. The app name, wireless range and effect count should come from the instructions for that version.

Set up the desired lighting while parked. For a campsite or vehicle display, choose a setting that suits the surroundings without dazzling other people. Color effects do not replace headlights, brake lights, turn signals or any required off-road flag.

Installation and First Power Test

Use the supplied instructions for the final assembly details. The following sequence keeps the electrical connection disconnected until the mechanical installation and cable route have been checked.

Park securely and inspect the light, base, holder, cable and connectors for damage.

Insert the 28 mm base into the verified holder to the specified depth and secure the retention mechanism.

Route and support the harness without straining the light base, connector or socket plug.

With the power plug disconnected, align and secure the keyed connector. Confirm that seals and mating surfaces are clean and properly seated.

Check the voltage and outlet capacity, then insert the power plug into the approved accessory socket.

Turn on the light and test the supplied controls. With the vehicle stationary, operate the tailgate and inspect for cable tension or pinching.

Before use, recheck the holder and clearances. Follow the mounting instructions and switch off or remove the assembly wherever its use is not permitted.

Where This Design Is Useful

At a campsite, the illuminated pole can add a visible accent to a parked vehicle and help distinguish it within a group. At a vehicle meet, the wrapped light strip changes the appearance of an existing flagpole setup without requiring a separate light-specific mounting arrangement when the holder is compatible.

The day and night photos illustrate the change in appearance, not a measured visibility distance or brightness rating. For off-road trips, confirm the installed height, holder capacity and permitted operating conditions before moving. No road-speed or wind rating should be inferred from a parked-vehicle photo.

Questions Buyers Often Ask

Do I Need to Buy a Separate Light Bracket

Not if you already have a compatible 28 mm flagpole holder with the correct insertion depth, retention and capacity. If you do not have a suitable holder, you still need a mounting solution.

Will It Fit Every SUV or Pickup

Fit depends on the holder, clearance, cable route and power supply rather than the vehicle category alone. Share your vehicle model and mount measurements so the installation can be checked.

Will the Harness Reach a Rear Mount

The harness is 4.5 m long. Measure the protected route and include enough allowance for tailgate movement. Reach cannot be guaranteed for every vehicle or socket location.

Does Installation Require Cutting Factory Wires

No cutting or splicing is intended when using the dedicated power plug with a compatible accessory socket. Any change to that power arrangement needs separate electrical assessment.

Is the Entire Kit Waterproof

The connector is described as waterproof in the product literature, but that description does not establish an IP rating for the complete kit. Ask for the rating and use conditions of the light, controller and connectors individually. Avoid immersion and pressure washing unless expressly approved.

The IEC explains that IP ratings classify enclosure protection against dust or liquids. That is why a specific rating is more informative than treating all outdoor components as equally water-resistant.

Reference: IEC explanation of ingress protection ratings

Can I Use Colored Effects on Public Roads

Check the rules where you will use the vehicle. Permitted colors and flashing patterns vary, and decorative lighting must not be confused with required or emergency signals. Do not assume road approval; switch the effects off when required.

Check Your Setup With ZYZ

The ZYZ direct-insert LED whip light combines a 28 mm mounting base, a 4.5 m harness and socket power for buyers who want an illuminated flagpole without splicing vehicle wiring. The practical next step is to verify the mount and wiring route for your vehicle.

Contact ZYZ with your vehicle model, holder measurements and mounting position to confirm the light length, electrical specification and kit contents. For trade orders, include your quantity, logo and packaging requirements.
