Views: 0 Author: Site Editor Publish Time: 2026-08-31 Origin: Site
The Ford Bronco Badlands is built for drivers who expect more than ordinary road use. Larger all-terrain or mud-terrain tires, heavier wheels and additional rear accessories are common upgrades—but each change can also place more stress on the tailgate and spare tire mounting area.
A tailgate reinforcement is designed to help manage that added load. However, choosing the right reinforcement is not simply a matter of finding a product with “Bronco” in the title. Vehicle market, trim, model year, tailgate structure, wheel offset, tire weight and existing accessories can all affect fitment.

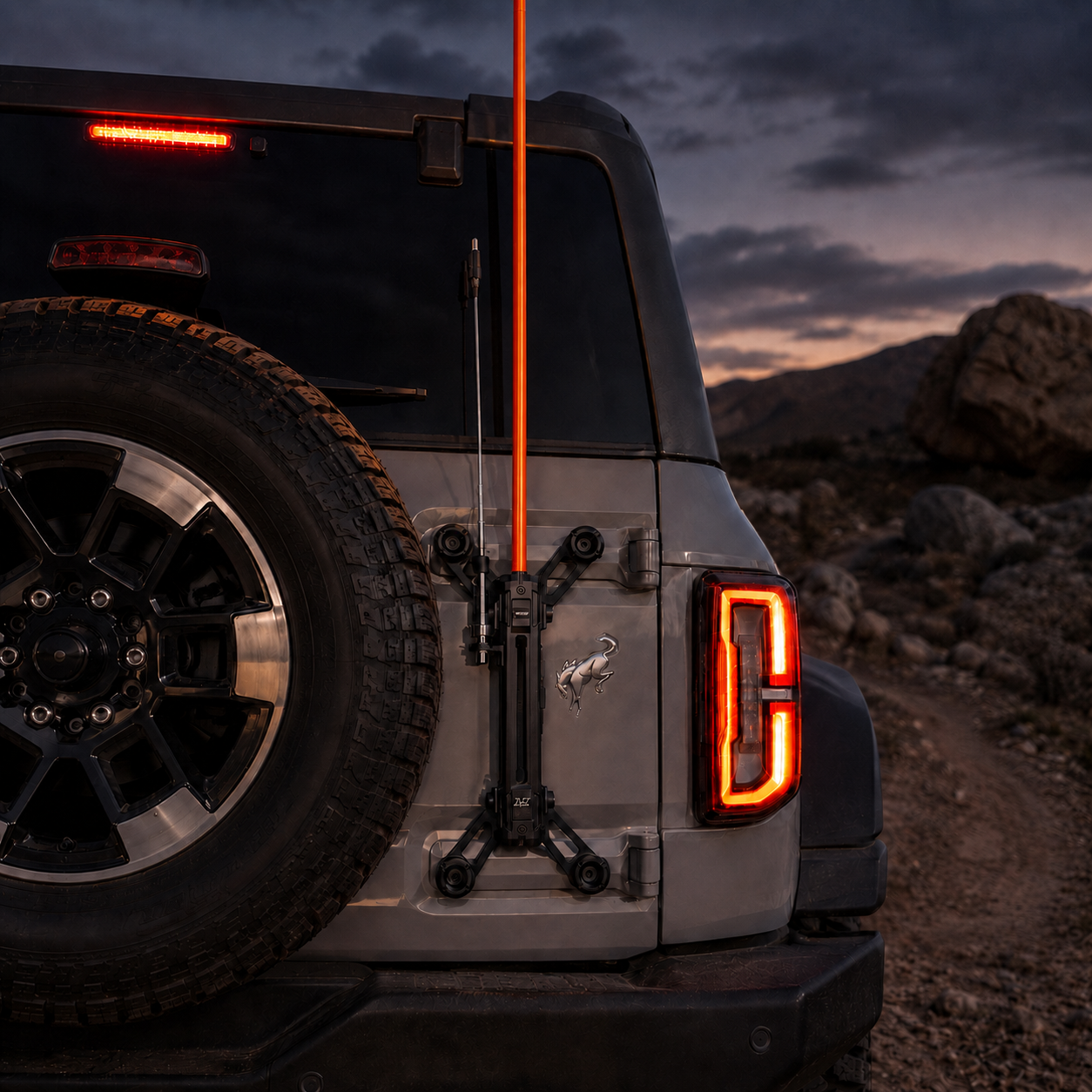

The ZYZ TG01LM is a newly introduced, vehicle-specific tailgate reinforcement developed for the China-spec Ford Bronco Badlands. This guide explains why reinforcement may be useful, what the product is intended to support, and what buyers should confirm before ordering or installing it.
Important compatibility note: TG01LM is identified for the China-market Ford Bronco Badlands configuration. Do not assume that it fits a North American Bronco, another trim or a different model year without written fitment confirmation.
Brand: ZYZ
Model: TG01LM
Product type: Vehicle-specific tailgate reinforcement
Intended vehicle: China-spec Ford Bronco Badlands
Product status: New product
Universal fit: No; vehicle-specific fitment must be confirmed
The supplied product information does not yet state a tested load rating, compatible model-year range, material specification, finish standard, installation torque or maximum supported tire size. Those details should be confirmed on the current product drawing, installation guide or quotation before purchase. A responsible product page should not replace missing specifications with assumptions.
A rear-mounted spare tire creates more than a simple downward load. Its weight sits away from the tailgate surface, so it also creates leverage. When the vehicle accelerates, brakes, crosses potholes or travels over uneven terrain, the spare tire can move in several directions. That motion transfers repeated forces into the spare tire carrier, mounting points, tailgate skin and hinge area.
Three factors matter most:
Total mass: A larger tire and heavier wheel normally weigh more than the original combination.
Distance from the tailgate: Wheel offset, spacers and accessory brackets can move the spare tire farther outward, increasing leverage.
Dynamic movement: Off-road impacts and vibration can create short, repeated loads that are higher than the tire’s static weight alone suggests.
This does not mean that every Bronco Badlands automatically needs reinforcement. A vehicle retaining its original tire, wheel and rear-door configuration may have different requirements from one carrying an oversized spare. Reinforcement becomes more relevant when the spare assembly is heavier, sits farther from the door or is regularly exposed to rough-road movement.
That distinction matters: reinforcement should support the existing system; it does not make every tire and accessory combination acceptable. It also does not automatically increase the vehicle manufacturer’s rated capacity.
When correctly matched and installed, a suitable reinforcement may help with:
managing movement from a heavier spare wheel and tire;
reducing flex around the mounting area;
supporting more consistent panel and latch alignment;
limiting vibration caused by movement in the carrier assembly; and
improving long-term stability under appropriate operating conditions.
Results depend on the source of the movement. A reinforcement will not repair worn hinges, loose hardware, a damaged latch, cracked sheet metal or an incorrectly mounted spare tire. Those issues should be diagnosed before accessories are added.
TG01LM is listed for the China-spec Ford Bronco Badlands, sometimes described by buyers as the Chinese domestic Badlands version. That is a much more precise fitment statement than “fits Ford Bronco.”
Before ordering, confirm all of the following:
country or market version of the vehicle;
exact model year and trim;
whether the tailgate, hinges and spare tire carrier are factory components;
clear photographs of the rear door with and without the spare tire installed;
spare tire size and actual wheel-and-tire weight;
wheel offset and any spacer thickness;
rear camera and third-brake-light position;
other installed accessories, including ladders, tables, antenna mounts or fuel carriers; and
whether the vehicle has previous tailgate repairs or body modifications.
For B2B orders, distributors should confirm fitment on a representative vehicle before committing to a large batch. A physical trial installation is more reliable than judging compatibility from the vehicle name alone.
TG01LM may be a suitable candidate if:
your vehicle is the China-spec Ford Bronco Badlands for which the product was developed;
you want a model-specific reinforcement rather than a universal bracket;
your spare tire and wheel combination remains within the limits confirmed by the supplier and installer;
the tailgate and hinge area are in sound condition; and
you can verify installation clearance with the camera, brake light, latch and surrounding bodywork.
You should pause and request further confirmation if:
your Bronco was built for another market;
the trim or model year differs from the verified application;
the vehicle has an aftermarket bumper, swing-out carrier or modified tailgate;
the spare tire uses a large spacer or unusual wheel offset;
the door already drops, binds, rattles or shows cracks; or
no current installation drawing or compatible vehicle photos are available.
These are not minor details. A correctly manufactured reinforcement can still be the wrong product for a vehicle whose mounting geometry differs.
Before fitting any reinforcement, inspect the vehicle in its current condition. This creates a useful baseline and helps prevent an existing problem from being incorrectly blamed on the new accessory.
1. Check tailgate operation
Open and close the tailgate slowly. The latch should engage without lifting, pushing or forcing the door. Note any sag, uneven gaps, contact marks or movement at the hinges.
2. Inspect the spare tire carrier
Check the carrier and surrounding mounting area for looseness, distortion, damaged fasteners or corrosion. Confirm that the wheel sits evenly against its mounting face.
3. Record the wheel and tire setup
Write down the tire size, wheel size, wheel offset, spacer thickness and combined wheel-and-tire weight. Do not estimate the total weight when evaluating a modified setup.
4. Check accessory clearance
Photograph the camera, third brake light, rear wiper path, door handle, latch area and any other rear accessories. These components must remain functional after installation.
5. Compare the vehicle with the current fitment guide
Match mounting points and hardware locations to the supplier’s latest drawing or installation manual. If they do not match, stop rather than modifying the bracket or vehicle without engineering approval.
The exact TG01LM installation sequence should follow the current manufacturer instructions supplied with the production unit. The points below are general workshop principles, not a replacement for the product manual or Ford service information.
Park on a level surface, secure the vehicle and support the spare tire or tailgate where required.
Protect painted surfaces before removing factory hardware or positioning metal components.
Lay out the complete kit and compare each bracket, spacer and fastener with the parts list.
Install components loosely at first so the assembly can align without being forced.
Check door gaps, latch engagement, camera view and lamp clearance before final tightening.
Tighten fasteners in the specified sequence and to the documented torque values.
Open and close the tailgate several times before reinstalling or fully loading the spare tire.
Reinspect every attachment point after the initial road check and again after early use.
Do not guess torque values. Under-tightening can allow movement, while over-tightening can damage threads, crush spacers or distort mounting surfaces. If the production kit does not include torque guidance, obtain it from the supplier or use a qualified installer who can reference the relevant service information.
A short inspection after installation is just as important as the installation itself.
Confirm that:
the tailgate opens and closes smoothly;
the latch engages consistently;
body gaps remain even;
the spare tire is secure and does not contact painted panels;
the rear camera view is unobstructed;
the third brake light remains visible;
no bracket or fastener contacts wiring or moving parts;
all supplied retaining devices are installed; and
no new noise, movement or paint damage appears during the first road test.
After rough-road or off-road use, inspect the assembly again. Look for loosened fasteners, polished contact marks, coating damage or any change in tailgate alignment. Regular inspection is especially important when a heavy spare tire is carried outside the original configuration.
Assuming every Ford Bronco uses the same tailgate
Market and trim differences can change the mounting geometry. TG01LM’s stated application is the China-spec Badlands, not every Bronco worldwide.
Selecting by tire diameter alone
Two tires with the same nominal diameter may have different weights. Wheel material, width, offset and spacers also affect the load placed on the door.
Using reinforcement to hide an existing fault
A dropped tailgate, worn hinge or damaged carrier requires diagnosis. Reinforcement should not be used to clamp a damaged system back into position.
Ignoring the lever effect of spacers
Moving the spare farther away from the tailgate can increase leverage even if the tire itself has not changed.
Publishing an unsupported load claim
Retailers and distributors should only state a maximum tire weight or size when it is backed by a current test report or written technical specification for the exact product version.
Skipping the early reinspection
Fasteners and interfaces can settle after initial use. A scheduled recheck helps identify movement before it becomes a larger problem.
Best suited to: Owners retaining a tailgate-mounted spare within confirmed limits
Key consideration: Must match the exact vehicle and carrier geometry
Upgraded tailgate-mounted carrier
Best suited to: Setups requiring a different mounting position or additional adjustability
Key consideration: Added weight still acts on the rear door system
Bumper-mounted swing-out carrier
Best suited to: Very heavy spare tires or multi-accessory builds
Key consideration: More complex, heavier and may affect departure angle or sensors
No option is automatically best. The appropriate solution depends on total carried weight, how far it sits from the vehicle, operating conditions and the condition of the factory structure.
For distributors, off-road shops and private-label buyers, a useful technical package is more valuable than a long list of marketing claims. Before placing a volume order for TG01LM, request:
an application list with market, trim and model-year detail;
dimensioned product drawings;
a complete parts and hardware list;
installation instructions and specified torque values;
material and surface-finish specifications;
verified load or durability information, if available;
installed photos from the exact compatible vehicle;
packaging dimensions and gross weight;
spare-parts availability; and
current options for logo, color or retail packaging, where offered.
For the first order, conduct a sample installation and document the process. Photos of mounting points, clearances and final tailgate alignment can then support customer service, listing accuracy and installer training.
No universal compatibility should be assumed. TG01LM is currently identified for the China-spec Ford Bronco Badlands. Model year, market version, factory hardware and modifications should be confirmed before ordering.
Will TG01LM fit a North American Ford Bronco?
That fitment is not established by the supplied product information. Ask the supplier to compare mounting dimensions or perform a trial installation on the exact vehicle before listing it as compatible.
Does a tailgate reinforcement increase Ford’s official load rating?
Not automatically. An aftermarket reinforcement should not be presented as changing the vehicle manufacturer’s rated capacity unless that claim is supported by appropriate engineering documentation.
Can I use TG01LM with an oversized spare tire?
Possibly, but tire diameter alone is not enough to decide. Confirm the combined wheel-and-tire weight, wheel offset, spacer thickness, carrier position and the supplier’s documented limits.
Will the reinforcement eliminate tailgate rattle?
It may reduce movement when flex in the carrier or mounting area is the cause. It will not correct a worn latch, damaged hinge, loose internal component or improperly mounted wheel. Diagnose the noise first.
Does installation require drilling?
The available product information does not confirm the installation method. Check the current TG01LM installation guide before publishing a “no drilling” claim or beginning installation.
Should the product be professionally installed?
Professional installation is recommended when the spare is heavy, the tailgate is already misaligned or the installer does not have the correct support equipment and torque information.
What information should I send for a fitment check?
Send the vehicle’s market, model year and trim, plus clear photos of the complete tailgate, hinges, spare tire carrier and rear camera area. Include the tire size, wheel offset, spacer thickness and combined wheel-and-tire weight.
The most useful tailgate reinforcement is not the one with the broadest compatibility claim. It is the one that has been matched to the exact vehicle, installed with documented hardware and inspected under the owner’s real wheel-and-tire setup.
The ZYZ TG01LM is positioned as a dedicated reinforcement for the China-spec Ford Bronco Badlands. Buyers should confirm model-year fitment, mounting geometry, spare tire weight and accessory clearance before ordering. Distributors should complete a sample installation before advertising broader compatibility.
For a TG01LM fitment check, send us your Bronco’s market, model year, trim, rear-tailgate photos and complete spare wheel specifications. Our team can compare the information with the current product configuration before quotation.
