The ZYZ round tube flagpole mount attaches compatible flagpole hardware to a suitable roll bar or roof rack tube. Its split clamp base wraps around the tube, avoiding the need to drill a mounting hole through it.
Before ordering, measure the tube outside diameter and check how your flagpole base connects to the bracket. Both connections need to match.
How the ZYZ Round Tube Clamp Works
The lower clamp grips the tube while the upper tab supports the flagpole connection. The diagram shows 360-degree adjustment at the upper joint to position the tab during setup.
Choose the specified screw length and shim thickness for your measured tube size. The shims fill the intended space between the clamp and tube; extra tightening cannot correct a poorly matched configuration.
Specification | Listed detail |
Upper mounting hole | 1.2 cm, equivalent to 12 mm |
Adjustment shown | 360 degrees at the upper joint |
Dimensions shown | 10.9 cm high and 7.6 cm wide |
Listed weight | 0.4 kg |
Packaging | Carton box with foam protection; 20 sets per carton |
Choose the Clamp by Tube Outside Diameter
Use a caliper to measure the tube outside diameter, including its finish, at the mounting position. Choose an accessible straight section where the clamp can seat fully, clear of welds, bends and nearby brackets.
Tube diameter shown | Approximate inch equivalent |
39 mm | 1.54 in |
48 mm | 1.89 in |
53 mm | 2.09 in |
58 mm | 2.28 in |
These are four illustrated configurations, not a confirmed continuous adjustment range. If your tube measures between them, ask which screw and shim combination is suitable before ordering. Do not round a measured diameter to the nearest listed size and assume the fit will be correct.
The inch values are conversions for reference. For example, 2 inches equals 50.8 mm, which is different from both 48 mm and 53 mm. Share the actual tube measurement when requesting fitment advice.
Check the Flagpole Connection and Adjustment
Match the Base Hardware to the 12 mm Hole
The 12 mm dimension refers to the hole in the upper mounting tab. It does not describe the diameter of the flagpole shaft. Check how your pole attaches: its base may use a bolt, stud, socket or separate adapter. The connection needs suitable hardware and enough clearance to secure it properly.
A 12 mm hole alone does not confirm an M12 thread or compatibility with every 12 mm fastener. Confirm the hole type, tab thickness and the pole base connection before selecting the hardware.
Set the Position Before Use
Use the upper adjustment to choose the mounting tab orientation with the vehicle parked, then secure the joint according to the installation instructions. The 360-degree feature describes adjustment during setup; it should not be treated as a freely rotating joint during travel.
Check clearance for the complete flagpole and flag after setting the position. Leave space around the roof, lights, doors and any moving panels, and account for the final vehicle height before entering a garage or covered parking area.

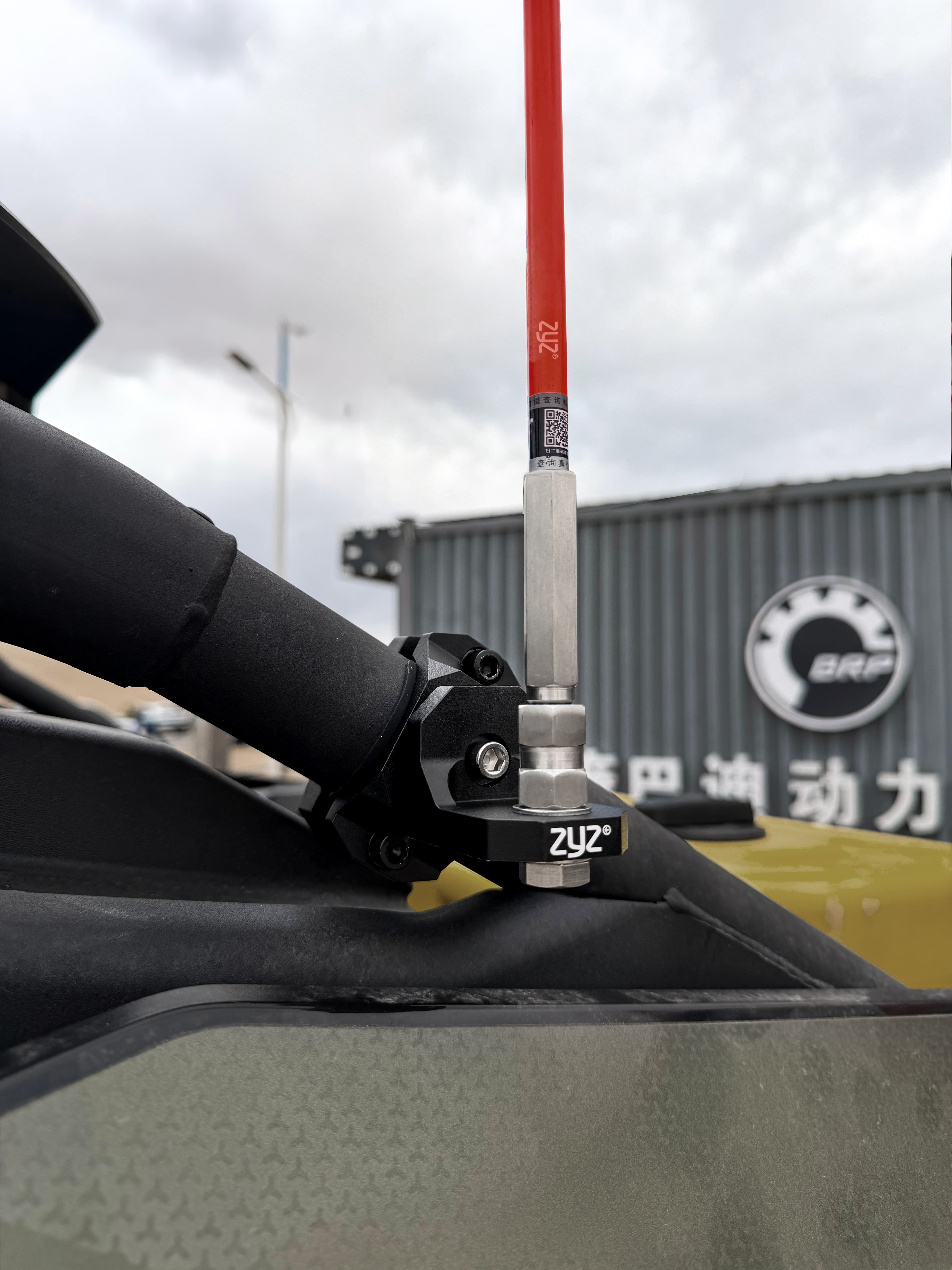

Mounting on UTV Bars and Roof Rack Tubes
On a UTV or ATV with a suitable exposed round tube, the clamp provides an attachment point without relying on a vehicle-specific body panel bracket. The available tube diameter, usable straight section and access to the fasteners determine whether the location is suitable.
The product sheet also lists FJ roof rack applications. Check the actual rack tube rather than relying on the vehicle name: an aftermarket rack can have a different tube profile or size. Square rails, oval crossbars and flat rack slots need a mount designed for those shapes.
The supporting tube or rack must be approved for the accessory and its mounting loads. This flagpole bracket is an accessory mount; it is not a structural roll cage connector or recovery attachment.
Installation Checks Before Your First Trip
Confirm the tube measurement, approved mounting location and compatible flagpole base. Obtain the correct screws, shims and installation instructions.
Clean and inspect the contact area. Position the clamp and specified shims so they seat correctly around the tube.
Install the specified fasteners and tighten them in the sequence and to the torque supplied by ZYZ. Do not choose a torque value from appearance alone.
Adjust and secure the upper joint, then attach the flagpole using its approved base hardware. Check access, overall height and clearance through the full movement of nearby doors or panels.
Check for looseness before use and recheck after the first outing. If the mount shifts, the tube shows damage or a fastener loosens, stop and correct the fit before continuing.
Pole length, flag size and the intended use all affect what the mounting system must withstand. Ask for the permitted pole setup and operating limits for your configuration. The bracket weight and exterior dimensions are product specifications, not a load or speed rating.
Frequently Asked Questions
Does the Clamp Fit Every Tube Between 39 and 58 mm
The diagram illustrates four configurations. For any intermediate diameter, confirm a suitable screw and shim combination with ZYZ before ordering.
Can It Hold an LED Whip Light
Check the light base connection, permitted load and cable clearance against this bracket. A light using a different socket or quick-release base may require a separately verified adapter.
Does Installation Require Drilling
The clamp attaches around a compatible tube, so the intended mounting method does not require drilling through that tube. The flagpole still needs compatible hardware at the upper mounting hole.
Is the Flagpole Included With the Bracket
Confirm the contents of the ordered set. The installation photo shows a pole mounted on the bracket, but an application photo does not establish that the pole, flag or every adapter is included.
Confirm Your Configuration With ZYZ
Send ZYZ your tube measurement, mounting-area photo and flagpole base details. Include the pole length, flag size and intended use so the clamp and connection can be checked together.
For distributor orders, the listed packing quantity is 20 sets per carton with foam protection. Ask for current kit contents, carton dimensions, gross weight and available branding options when requesting a quotation.
